IIC: Industrial IoT Reference Architecture

IIC: Industrial IoT Reference Architecture

One can find many ROI opportunities when looking at IoT to solve problems and bring value in an industrial context. Process improvement, asset tracking, and preventative maintenance are the three major pillars that drive ROI opportunities. The constant churning wheel of New Industrial IoT Platforms from vendors new and old can be staggering for those working to specify overall systems that address these opportunities.  Whether it be Bosch or Cisco, GE or Hitachi, Honeywell or Rockwell Automation, the various offerings stagger in their feature sets, and force the customer to speak different languages.

This is unfair to the to the specifier, as the definitions, structures, and points of views all vary greatly.

What is Industrial IoT Architecture?

The Industrial IoT architecture is a collection of multiple elements, such as sensors or devices that are working together to keep up with the industrial needs. In working with clients in the industrial space, we were requested to speak a common language and now we have one!  The Industrial Internet Consortium published in 2017 a new revision to their Industrial IoT Reference Architecture document (the IIRA).

I found this document to be a breath of fresh air – just like Colin I’Anson from HP Enterprise and his reflection on the document relate in the below video.

IoT is a wide subject.  Every architecture is different from one to the next, but this document is a must read, and in my opinion a great way to define your system- and require your various vendors to frame their offerings.

IIRA Definition

An architecture set at the highest level, the IIRA offers models, definitions and a well-defined set of vocabulary. The document presents a core set of standards and a common ground for IoT participants to frame development, documentation, communication and deployment. I am stoked that this tool will advance interoperability and help guide standard development.  Where there are standards, we can all thrive.

The IIRA is at home in the midst of the battle between OT and IT

Two already warring camps – those that manage sprawling enterprise-level IT architectures and services, and those that run real-world-connected industrial control systems, have long ago marked out their territories.

Over the past two decades, the shop floor has only begrudgingly sent data into the back office, and Enterprise IT will scrutinize any request from a device that wants to connect to the outside world (support, for example).

When plant managers with their need for always-up industrial manufacturing and monitoring systems come up against Enterprise IT management teams that are under a mandate for system and data consolidation, sparks fly, and things get rough.

I’ve seen and heard the name calling – and if you are reading this – surely you have too.

The phrase “Industrial Internet of Things” alone demands this gap be bridged and that these two parties calm themselves, and at the same time promises a better future for all.

Why work together?

Section 6 of the IIRA document sums up the future of IIoT in a way that promises a better world for industrial control engineers:

Riding on continued advancement of computation and communication technologies, the industrial internet can dramatically transform industrial control systems in two major themes:

a) Increasing local collaborative autonomy: New sensing and detection technologies provide more and more accurate data.

Greater embedded computational power enables more advanced analytics of these data and better models of the state of a physical system and the environment in which it operates. The result of this combination transforms control systems from merely automatic to autonomous, allowing them to react appropriately even when the system’s designers did not anticipate the current system state. Ubiquitous connectivity between peer systems enables a level of fusion and collaboration that was previously impractical.

b) Increasing system optimization through global orchestration: Collecting sensor data from across the control systems and applying analytics, including models developed through machine learning, to these data, we can gain insight to a business’s operations. With these insights, we can improve decision-making and optimize the system operations globally through automatic and autonomous orchestration.

Industrial Internet Reference Architecture

These two camps get equal consideration in their roles in the IIoT architecture through the IIRA.  The beginning of the IIRA document starts out with VIEWPOINTS.

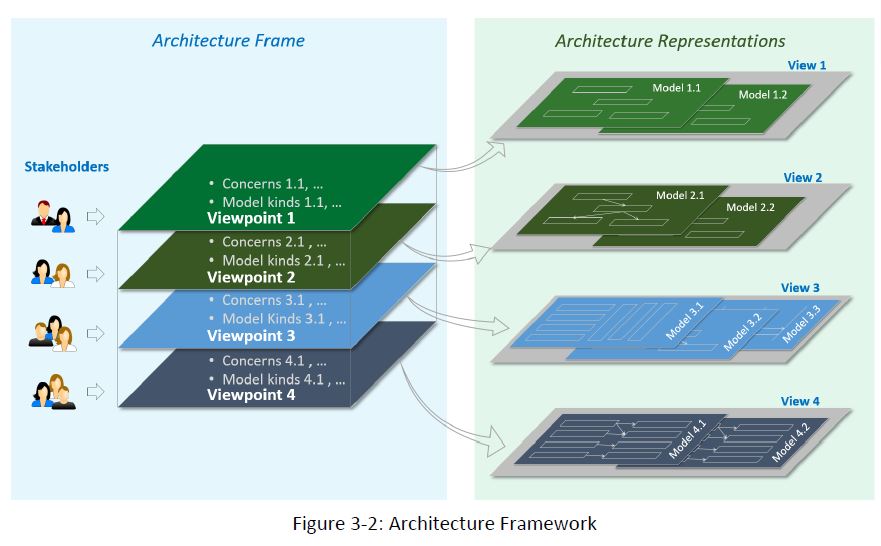

The viewpoint is crucial to the IIRA design.  The IIRA design starts with defining the shapes and forms of an Industrial Internet of Things Architecture by starting with the viewpoints of the stakeholders.

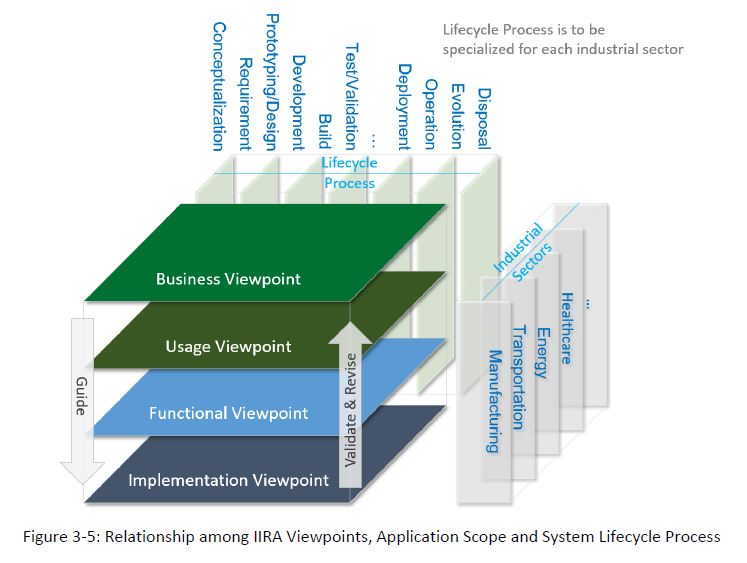

Using the IIRA as a guide to develop a single case specific architecture document, viewpoints are tied to the entire lifecycle process of the IIoT architecture to be developed.

I find this starting point and allowance gracious, wise, and solution focused.

As the IIRA progresses, the Viewpoints are tied into systems and classified into five functional domains:

• Control domain
• Operations domain
• Information domain
• Application domain
• Business domain

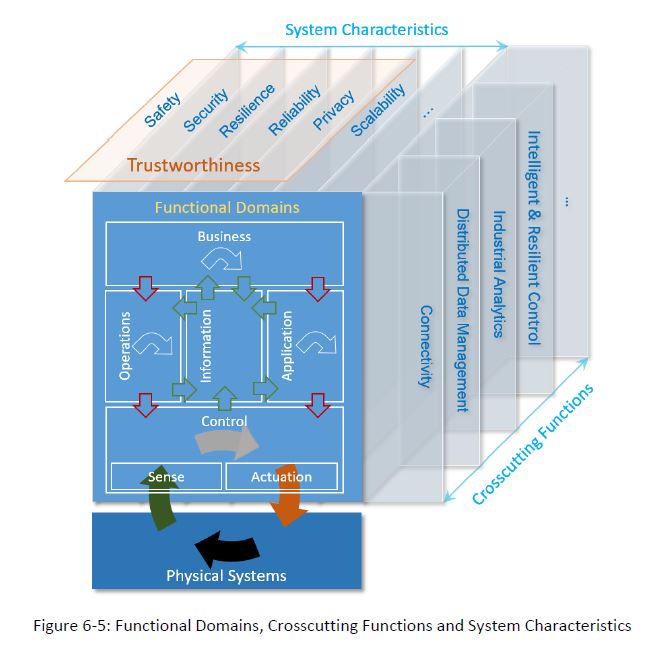

Note the importance of the control domain in the below borrowed figure 6-5 – Control is highly valued, and made to respond to not only physical sensing, but also operational and application data (ie. a fully defined system).

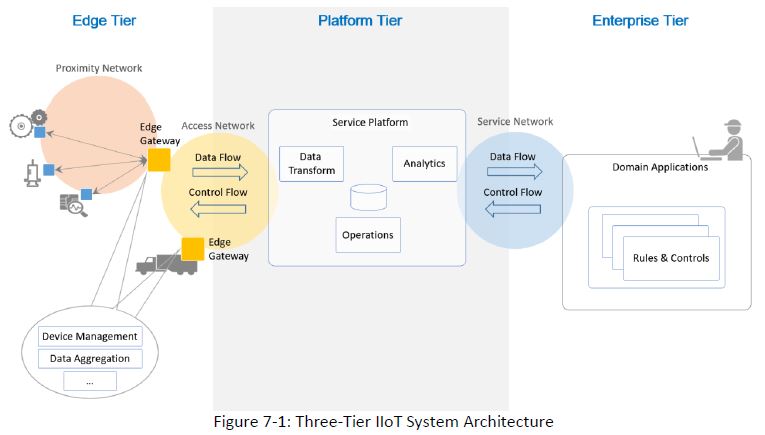

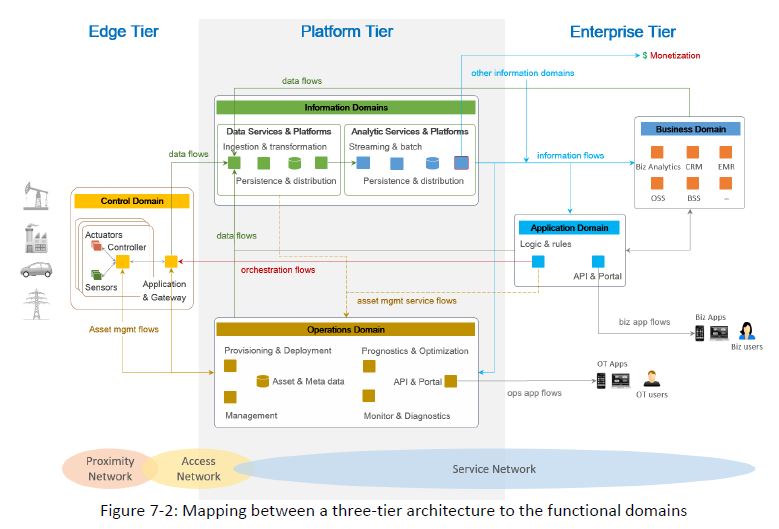

As the 58 page document progresses, it defines systems and architectures into tiers, domains, networks and data flow.

If you did not have a chance, I urge you to download the document and read it through – for the definitions at least.

6 Best Practices In Industrial IOT Architecture

Useful IoT prototypes can be built from a variety of visual and step-by-step tools, and are instrumental in showing the vision and promise of bring IoT into your enterprise. When it’s time to design the production system that will support your production business cases, new aspects must be considered and accounted for that were not needed during the original conceptual phase. Your system architecture must be designed upfront with these in mind or your project will stall out before reaching production, leaving your organization vulnerable to more connected competitors.

1. PLAN FOR AN EVOLVING DATA MODEL

Every IoT application has a data model that includes data from the devices themselves, as well as user generated data and data from outside systems. The data model must support the use cases for which the system is being designed.

Modeling this data and allowing the data model to evolve gracefully over time are both areas that require a great deal of attention in the design phase. Model everything out of primitives that track history. This allows you to not just keep time series data, but also the evolution of the schema and other data over the lifespan of the system. An API-accessible graph based, time series data store is critical to the proper operation of Enterprise-grade IoT systems. Model the data elements as well as the associated metadata to provide a rich, contextualized graph for algorithms to use to process the data into information.

2. START AT THE END (USER)

Most IoT systems are meant for consumption by an end-user who may not an employee of the provider of the system. The user interface can be a mobile or web based application, as well as a voice or event a data driven interface consumed through yet another application. There are several common elements that should be considered for an end user interface to any IoT application.

• User Authentication and Authorization
• Sales Demo vs. Manufacturing vs. Individual vs. Corporate Use Cases (including transitions)
• Implementation, Interaction and Visualization of User Story capabilities (including reports)
• Alert Condition Notification Mechanism
• User Generated/Supplied Data

Within each specific type of interface there are other dimensions that need to be considered. A non-exhaustive list includes:

• Mobile – Distribution and Periodic Updates; Minimum Supported OS Versions
• Web – Browser Level support; Page Load Time
• Enterprise Connectors – Authentication Mechanisms, Inter-networking Configuration, Data Formats
• Voice – Command/Query Structure; Device Support (Alexa, Siri, Cortana, etc)

3. LEARN THE FUNDAMENTALS OF TRUSTED COMMUNICATION

Enterprise IoT systems rely on a foundation of trust. For every connection, the following 3 questions must be answered with confidence at each tier of communication:

• Is the device communicating with the system that it should be?
• Is the device really who it claims to be?
• Can the system validate that the device has not been compromised?

These can only be answered in production when the right design is used from the start.

DEVICE VALIDATING SERVERS

The best practice recommendation is for a device to validate a server by communicate using TLS. Both the HTTP and MQTT protocols support TLS. For legacy protocols that don’t cleanly map into either HTTP or MQTT, other mechanisms are used.

SERVERS AUTHENTICATING DEVICES

In most IoT topologies, a device initiates communication with a server. In other topologies, a device and server both communicate to a trusted intermediary, which relays communication between them. In rare cases, the server initiates communication with the device.

THE USE OF CHALLENGES

Challenges are a technique for verifying with a high degree of confidence that your communications partner is who they claim to be.

The best practice recommendation for IoT applications is for a server to challenge a device. In an ideal world, the device would have a Trusted Computing Module (TCM) in their hardware design that would have a unique private encryption key stored inside. This challenge along with other inputs would be passed to the TCM to generate a response to the challenge. Using this technique, servers can detect if someone is spoofing a device (by having compromised credentials) or if a device is corrupted with some form of malware.

EXPIRING TOKENS

Expiring Tokens are a technique where a device accesses a provisioning service to acquire a token and then uses the token for communication with the IoT application on the server. This technique isn’t as robust as a full challenge mechanism, but it does have the benefit of providing a scoped window of time for exploits in the event the token is compromised.

SHARED CERTIFICATES

Another common technique is to generate a shared certificate that is loaded onto the device and the server. This technique can work well, but introduces issues around managing the lifecycle of the certificates.

NETWORK AUTHENTICATION

There are often requirements to authenticate with a specific communication channel in order to be able to establish an internet connection. In the cellular world, this is usually dictated by the network provider handled by the cellular module. In the WiFi world, this is typically dictated by the router infrastructure (WPA2, WEP, etc) and has varying support depending on the WiFi module. It is critical to understand the variation of the end customers WiFi environment in order to ensure that network authentication is possible. For example, many businesses require WPA2 Enterprise to connect to their WiFi, but not all WiFi modules support this standard.

4. UNDERSTAND THE COMPLEXITY OF IDENTITY

Identity is a fluid concept in IoT systems. There multiple notions of identity, which can vary depending on your frame of reference. More importantly, each sub-type can change over time with impacts that ripple throughout the system.

Take a look at 7 examples of different identities that a single device can have in an enterprise IoT system.

• Communication Network Identity – the uniqueness value for the communication channel such as a MAC address for WiFi devices and IMEI or MEID for cellular devices.
• Manufacturing Identity – the uniqueness value for the manufacturing system used to track the serialized and unserialized (by batch number) sub-component parts that went into the BOM of a specific device.
• Enterprise Identity – the uniqueness value for the Enterprise IT system used by software that needs to know about a device.
• IoT Identity – the uniqueness value for the IoT system used to associate incoming communications with a specific device and to address outgoing commands to a specific device.
• Customer Identity – how the customer refers to the device, often not specific to the device but rather the thing/asset that the device is monitoring and controlling, or a location in a process.
• Device Identity – what the device knows and can report to an IoT system about its own identity.
• Financially Responsible Entity Identity – the party that is ultimately the “owner” of the device and responsible for paying any service fees.

IDENTITY CHANGES AND IMPACTS

Further complicating the matter, these identities often change over time. It is critical to have an identity mapping early in a project and to ensure the wider team from manufacturing to enterprise is aware of the impacts of any changes to identity. Ideally, there would be a 1:1 mapping between the Manufacturing, Enterprise, IoT and Device identity, but this is rarely the case in retro-fit scenarios or when multiple vendors are involved. There are at least 5 key events that trigger changes to at least type of identity.

• Complete Device Replacement – Customer Identity may stay the same, but the other identities may or may not change. If it the prior device is going out of service permanently, it should be marked inactive in all systems and if it sold it needs to be moved into the purchasers list of devices. Historical data must be properly segmented and permissions set depending on the particular terms of sale.
• Subcomponent Replacement – a serialized sub-component may be replaced as a part of servicing the device. Data about the replacement component (and it’s history) and the one going out of service often need to be recorded, and tasks such as resetting of timers for maintenance alerts must be addressed.
• Sale of Device – the sale of a smart motorcycle or other product changes the Customer Identity but the other device identities may not change, and impacts histories from sensors in various ways and may even have legal data privacy concerns for some geographies and datatypes.
• Communications Module Replacement – when better data rates become available and SIM cards are swapped out, the Communications Network Identity changes, which can be indistinguishable from a complete device replacement or programmable serial number scenario.
• Programmable Serial Numbers – when the identity is programmable in the device, which can contain errors or omissions of key steps leading to duplicate identities. Incoming data may be mis-associated with the wrong device history or orphaned altogether.

5. LISTEN TO THE TICKING BOMB OF TIME

For each datapoint in an IoT system, there are multiple notions of time. Event Time, aka ‘actualized at’ time, describes when the physical event happened.  Server Time, aka ‘created at’ time, describes when the physical event arrived at the IoT system.

Many events occur in a domain without reliable access to a reference clock. In NTP terminology, the events happen in Stratum 16, which is the unsynchronized time domain. Depending on topology, events and their unsynchronized times may be handed off across a network with multiple hops before reaching a system with access to a reference clock. Each of these handoff points introduces ambiguity into the time of the event, such that Event Time is actually a probability distribution, rather than a discrete point.

EVENT TIME FORMATS

Event Times are tricky due to the fact that events may occur on systems without reliable access to a reference clock. To enable analytics and machine learning from real-world data, time must be properly accounted for. Here are 5 scenarios where time formats vary for events that happen:

• Prior to gaining a GPS lock or reference time from a cellular network
• In a device that is intermittently connected to a network.
• Without knowing the device location to determine a time zone offset
• In a system that only contains an incrementing counter from boot time
• When the real-time clock power source is removed or replaced

As a best practice, time should be represented in ISO8601 format from the point that the event is first handled by a system with access to a reference clock. If known and trusted, the timezone offset of the event should be preserved to the extent possible. In data handoffs between Stratum 16 devices, using clock ticks is useful technique for synchronizing Event Times.

In cases where a device is operating temporarily without access to a reference clock, a best practice is to use clock ticks for the Event Times and then apply ISO8601 timestamps retroactively once a reference clock is established. This is most common in the case of acquiring a GPS lock much later after startup.

6. USE CACHED DATA TO STORE EVENTS ON THE DEVICE

Cached data is a buffer of events that can be requested and reported at a later time. This technique is critical for devices that go in and out of coverage areas. It is also a best practice for any WiFi devices, where they wish to keep recording data even if the WiFi connection is disrupted.

Devices must be capable of associating a timestamp with each event, and respond to requests for data that occurred between time X and time Y,  between X seconds ago and Y seconds ago, and for data that occurred between X seconds and Y seconds from the end of bootcycle Z.

It is best practice for devices to keep a rolling circular buffer containing h the timestamps, clock ticks and bootcycle for the events. If events are not formatted until transmittal, special care needs to be taken when writing new firmware versions to ensure authentic rendering to the firmware that was in play at the time of the event.

FAQs about Industrial IoT Reference Architecture

What is IIoT architecture?

IIoT (Industrial Internet of Things) architecture refers to the framework that outlines the structure and components of an industrial IoT system. It defines how devices, networks, data, and applications interact within an industrial setting.

What is Internet reference architecture?

Internet reference architecture provides a standardized framework for designing and implementing internet-based systems. It outlines the key components, their relationships, and how they work together to deliver internet services and applications.

What type of architecture reference model is used for IoT?

The architecture reference model commonly used for IoT is the OSI (Open Systems Interconnection) model. It provides a structured approach for understanding and designing the various layers of communication protocols in IoT systems.

What are the different views for the IoT reference architecture?

The IoT reference architecture can be viewed from different perspectives:

Functional view: Focuses on the functionalities and capabilities of each layer in the architecture.
Information view: Emphasizes the flow of information and data across the IoT system.
Deployment view: Addresses the physical arrangement of components and their distribution in the IoT ecosystem.
Operational view: Deals with the processes and operations involved in managing and maintaining the IoT system.

This article was written by Jon Hallsten, an award-winning IoT thought leader, technology innovator and business owner. The original version of the article can be accessed here.
